HomeShopBrake HardwareWilwood Proportioning Valve with Lever Adjustment – Part #260-8420
Sale

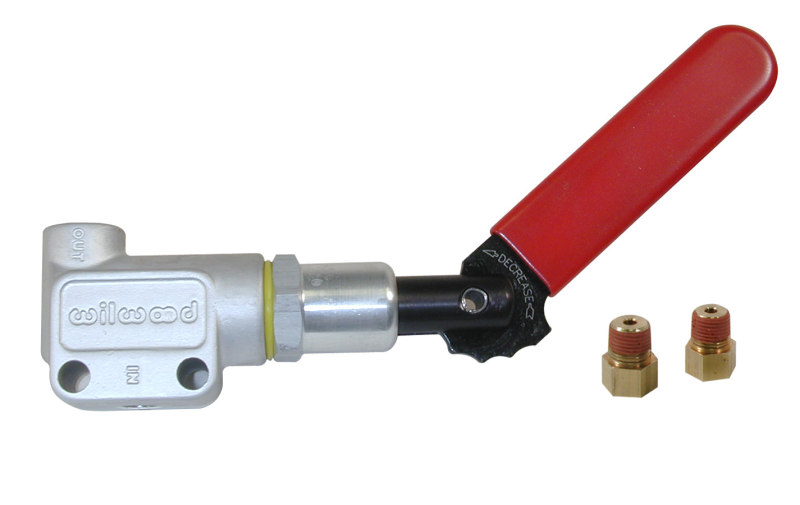

Wilwood Proportioning Valve with Lever Adjustment - Part #260-8420

Wilwood Proportioning Valve with Lever Adjustment – Part #260-8420

SKU: 260-8420

Original price was: $114.27.Current price is: $105.81.

Out of stock

Out of stock

Category: Tags: , ,
Product information
Weight 0.5 lbs
Dimensions 8 × 6.3 × 1.2 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Unknown
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

889545067941
brand

Wilwood
part_number

260-8420
Description
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Description

The Wilwood Proportioning Valve with lever adjustment offers precise brake pressure control for high-performance automotive applications. Crafted from a compact forged billet, this valve provides durability and strength while maintaining a lightweight design, weighing only 6.1 ounces. Its adjustable pressure range spans from 100 to 1000 PSI, allowing for fine-tuned brake bias adjustments during racing conditions. The valve features six preset positions activated by a lever that securely

Features:

  • Pressure Adjustment Range: 100-1000 PSI for versatile brake bias tuning
  • Six Preset Adjustment Positions: Lever-operated clicks for quick and positive adjustments during races
  • Compact Forged Billet Design: Ensures strength and durability while maintaining a lightweight profile
  • Inlet/Outlet Ports: 1/8-27 NPT fittings compatible with most domestic 3/16-inch hard brake lines
  • Mounting Holes: Two 0.25-inch side mounting holes spaced 1.00 inch apart for easy installation
