HomeShopConnecting Rods - 4CylSkunk2 Alpha Series Honda K24A/Z Connecting Rods – Forged 4340 Chromoly Steel, Rated for 900+ HP
Sale
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 2
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 3
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 4
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 5
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 6
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 7
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 8
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 9
Skunk2 Alpha Series Honda K24A/Z Connecting Rods - Forged 4340 Chromoly Steel, Rated for 900+ HP - Image 10

Skunk2 Alpha Series Honda K24A/Z Connecting Rods – Forged 4340 Chromoly Steel, Rated for 900+ HP

SKU: 306-05-1150

Original price was: $496.25.Current price is: $471.44.

Out of stock

Out of stock

Category: Tags: ,
Product information
Weight 5.3 lbs
Dimensions 9.8 × 4.3 × 4.2 in
air_freight_prohibited

false
not_carb_approved

false
ltl_freight_required

false
prop_65

Y
part_type

automotive
epa

N/A
carb_acknowledgement_required

false
regular_stock

t
upc

873265002641
brand

Skunk2 Racing
part_number

306-05-1150
Description

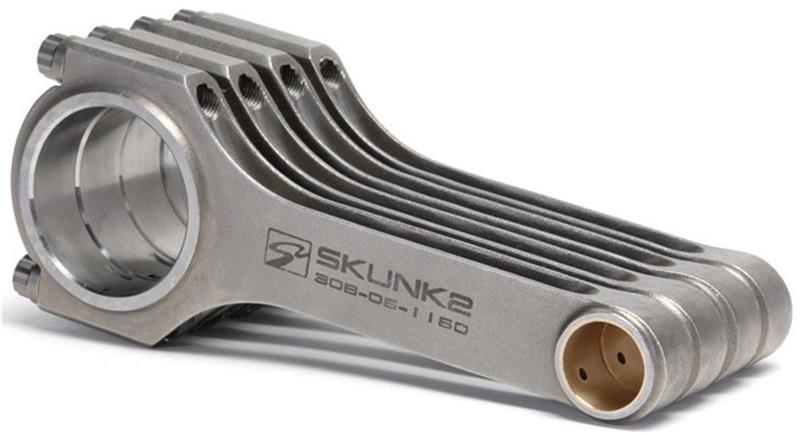

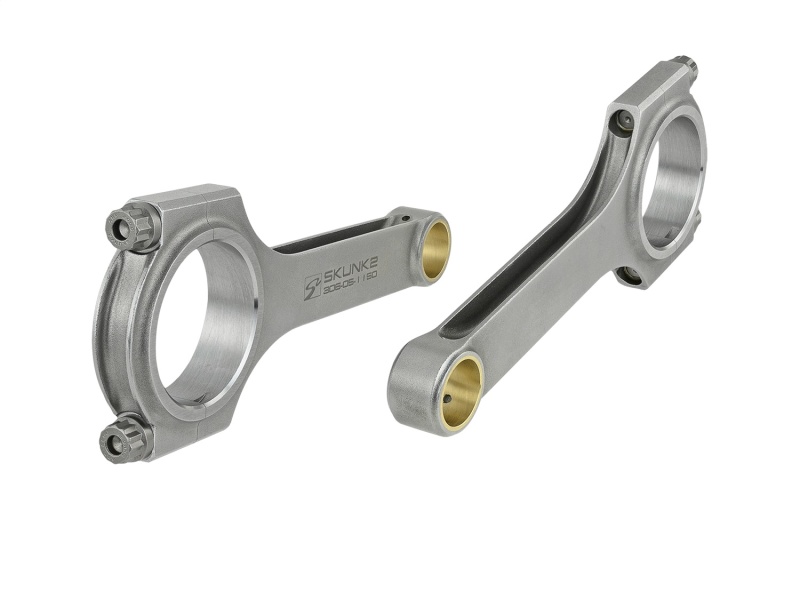

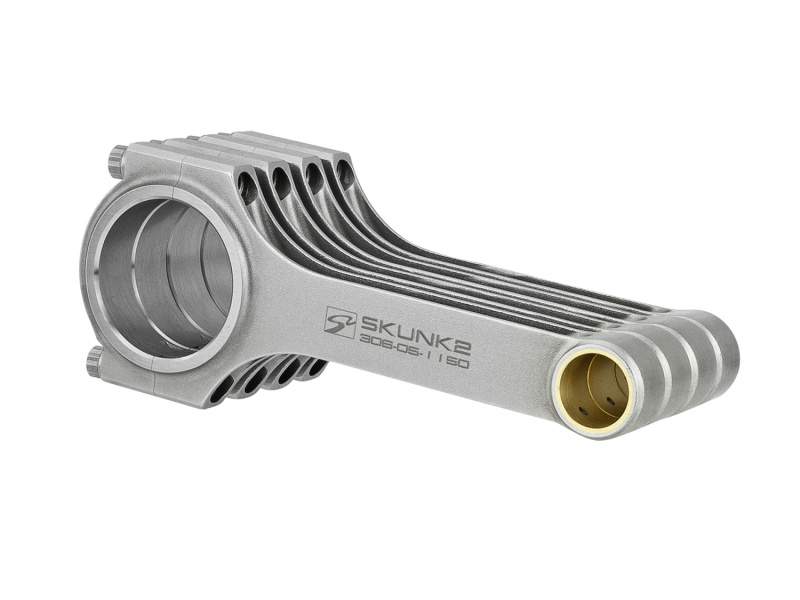

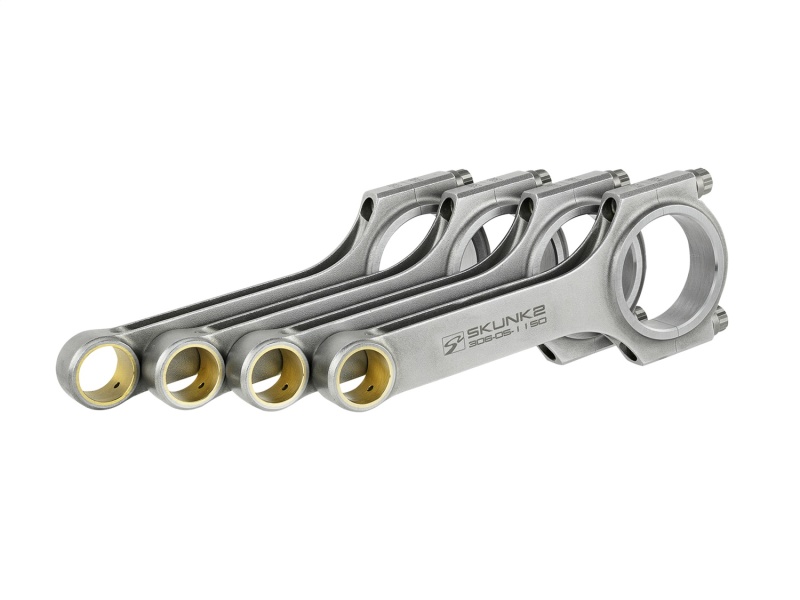

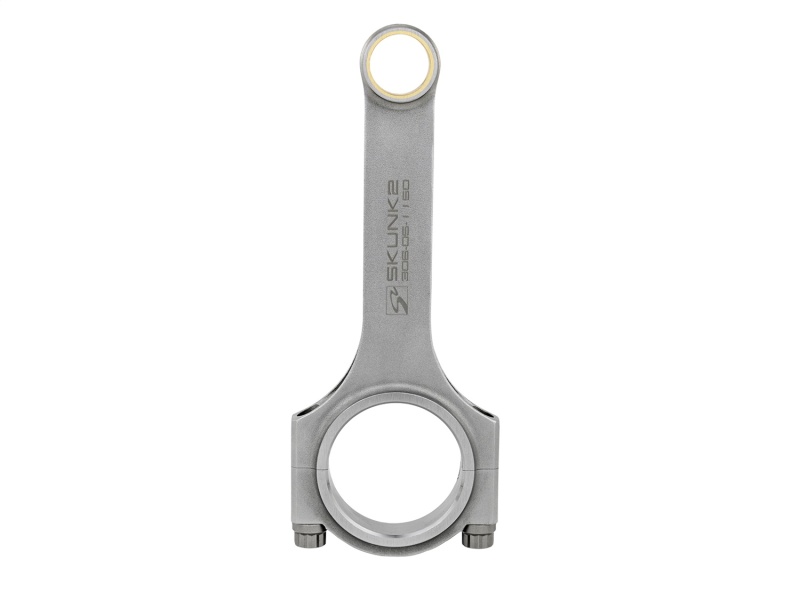

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications. Alpha Series Connecting Rod Set; 152.00mm Length; 489 Grams; Rated to 900HP; H-Beam; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;
  • Dual-Pin Oil Passages For Increased Lubrication And Strength
  • Pin End Compatible w/Most Pistons w/o Machining
  • Shot-Peened For Reduced Fatigue

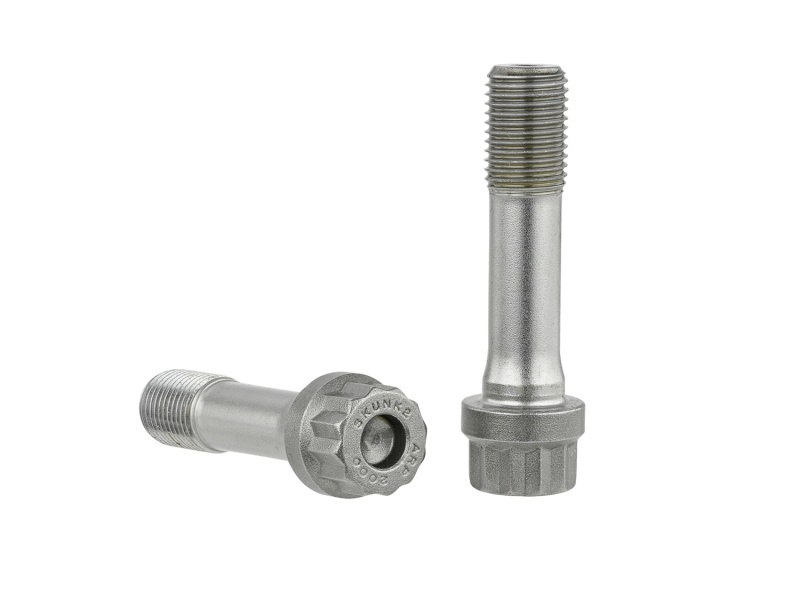

  • 3/8-in. ARP2000/Skunk2 Bolts
  • Bronze Wrist Pin Bushings
  • Magna-flux Inspected
  • Balanced +/- 1 Gram
  • Weight 491 grams
  • Length 152.00mm
  • 900+ HP Capable
  • Heat Treated
  • FEA Analyzed

Description

Upgrade your engine’s performance with the Skunk2 Alpha Series Honda K24A/Z Connecting Rods. Crafted from high-strength 4340 chromoly steel, these rods are designed with a straight H-beam structure to optimize strength-to-weight ratio, providing durability and reliability for high-performance applications. Each rod undergoes rigorous heat-treating, tempering, and shot-peening processes, ensuring consistent quality and resistance to fatigue. Comprehensive magna-flux inspection further guarantees integrity, making these rods suitable for serious enthusiasts aiming for boosted horsepower levels. Featuring dual-pin oil passages, they promote enhanced lubrication and strength, supporting engines with over 900 horsepower capacity. The rods include bronze wrist pin bushings and are compatible with most pistons without additional modifications, simplifying installation.

Fitment:
Acura TSX Base 2004
Acura TSX Base 2005
Acura TSX Base 2006
Acura TSX Base 2007
Acura TSX Base 2008
Honda Civic Si 2012
